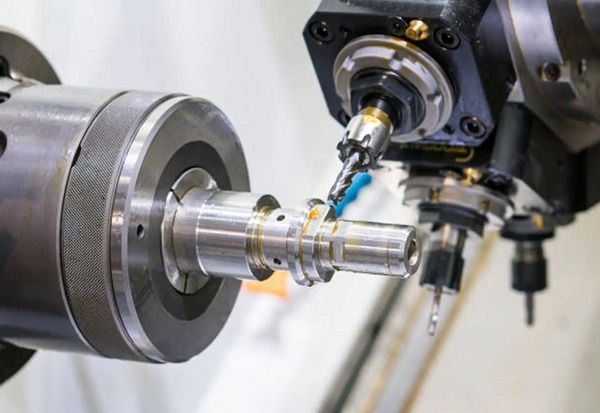

If you’re struggling with poor surface finish, broken tools, or parts that don’t hold size, you’re not alone. Most CNC turning problems trace back to just a few root causes: vibration (chatter), heat distortion, programming errors, or weak workholding. The good news? You can fix all of them with the right approach. Below are five proven tips that will help you achieve better results, longer tool life, and fewer scrapped parts.
1. Why Do Speeds and Feeds Matter So Much?
Using the wrong cutting parameters is the fastest way to ruin a part. Too much speed overheats the insert. Too little speed causes rubbing and poor finish. The key is matching feeds and speeds to your specific material.
Match parameters to your material
| Material | Recommended Cutting Speed (m/min) | Feed Rate (mm/rev) |
|---|---|---|
| Aluminum | 200–400 | Rough: 0.3–0.8 / Finish: 0.05–0.2 |
| Carbon Steel | 80–120 | Rough: 0.3–0.7 / Finish: 0.05–0.15 |
| Stainless Steel | 60–100 | Rough: 0.2–0.5 / Finish: 0.05–0.12 |
| Titanium | 30–60 | Rough: 0.1–0.3 / Finish: 0.03–0.08 |
Roughing vs. finishing: two different jobs
- Roughing passes remove bulk material fast. Use higher feed rates (0.3–0.8 mm/rev) and lower speeds. This saves time and reduces heat buildup.
- Finishing passes create the final surface. Drop feed rate to 0.05–0.2 mm/rev. This eliminates tool marks and achieves tight tolerances.
Real-world example: A shop machining 4140 steel switched from 150 m/min to 90 m/min. Tool life jumped from 45 parts per edge to 120 parts. Surface finish improved from Ra 3.2 to Ra 1.6.
2. How Do You Stop Chatter and Vibration?
Chatter is your enemy. It destroys surface finish, wears out tools fast, and makes precision impossible. Most chatter comes from a lack of rigidity in your setup.
The 3:1 rule you must follow

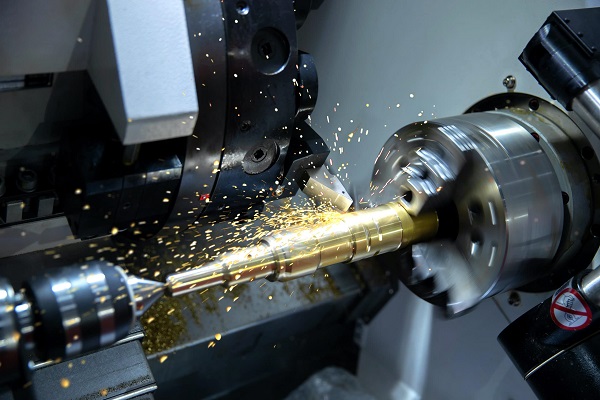

If your part’s length-to-diameter ratio exceeds 3:1, you absolutely need a tailstock or steady rest. Example: a 150mm long part with 40mm diameter gives a 3.75:1 ratio. That’s past the limit. Without support, deflection is guaranteed.
Clamping force: don’t overdo it
Different materials need different chuck pressures:
- Steel: 7.5–12.5 kN/cm² — handles high clamping well
- Aluminum: 3.75–6.25 kN/cm² — too much pressure distorts thin walls
- Brass/Bronze: 4–7 kN/cm² — moderate clamping is safe
Pro tip: For thin-walled aluminum parts, use soft jaws machined to match your part’s OD. This distributes pressure evenly and prevents egg-shaping.
Other rigidity checks
- Keep tool overhang as short as possible. Stick out no more than 1.5x the tool shank height.
- Use the largest possible boring bar diameter for internal work.
- Check your turret alignment every 500 operating hours.
3. What Setup Mistakes Cause Crashes?
Most crashes come from simple human errors, not machine failures. A single missed zero point or forgotten offset can destroy a chuck, spindle, or your entire week.
Always verify zero points twice
One millimeter error on the Z-axis can send your tool straight into the chuck. That’s a $5,000 mistake waiting to happen. Build a habit: check X and Z zero points before every run. Then check them again.
Run simulations before cutting metal
Never trust G-code blindly. Always do one of these:
- Graphic simulation — shows tool paths visually, catches obvious collisions
- Dry run — run the program with no material, feed override at 10–20%, finger near the stop button
Single-block mode is your friend. Run each line one at a time on the first part. It takes an extra two minutes. It saves hours of crash cleanup.
Tool offset checklist
| Check | What to verify |
|---|---|
| Tool geometry offsets | Correct X and Z values entered |
| Wear offsets | Zeroed for new tools |
| Nose radius compensation | Direction (G41/G42) correct |
| Work shift (G54–G59) | Matches your setup sheet |
4. How Does Tool Geometry Affect Your Results?
The right tool geometry makes chip control easy. The wrong geometry creates birds’ nests, heat damage, and scrapped parts. Most operators underestimate this.
Nose radius compensation matters
Your CNC program must account for the insert’s corner radius. Miscalculate this, and every feature will be undersized or oversized by the radius amount.
Example: A 0.4mm nose radius cutting a 10mm diameter shoulder. Without compensation, you’ll get 9.2mm or 10.8mm depending on direction. That’s way out of tolerance.
Watch for thermal damage
Inserts don’t fail silently. Look for these warning signs:
- Blue-violet color on the insert tip → excessive heat, reduce speed
- Flank wear over 0.3mm → time to index or replace
- Cracked or chipped edge → feed too high or interrupted cut
Chip breakers are not optional
Chips that won’t break cause tangles, block coolant flow, and scratch finished surfaces. Use inserts with dedicated chip breakers matched to your feed rate:
- Low feed (0.05–0.15 mm/rev) → polished or sharp edge breaker
- Medium feed (0.15–0.4 mm/rev) → standard molded breaker
- High feed (0.4+ mm/rev) → heavy-duty breaker with larger step
Real-world result: A shop machining 316 stainless switched to a chip-breaker insert designed for 0.25 mm/rev feed. Stringy birds’ nests disappeared. Cycle time dropped 18% because operators stopped stopping the machine to clear chips.
5. Why Is Maintenance Killing Your Tolerances?
You can have perfect programming and still drift out of tolerance. The culprit? Poor maintenance. Heat, worn guides, and bad coolant all shift your results over time.
Heat distortion is real and predictable
A spindle that runs 10°C hotter than baseline grows. On a 500mm part, thermal growth can reach 0.05–0.10mm. That’s enough to scrap precision work.
Fix: Let the machine warm up for 15–20 minutes before critical work. Run a few air cuts to stabilize temperatures. Some controllers offer thermal compensation — turn it on.
Lubrication prevents “stick-slip”
Starved linear guides cause positional errors called stick-slip. The axis moves in jerky jumps instead of smooth motion. Results? Faceted surfaces and inconsistent diameters.
Check your way oil levels daily. On high-use machines, grease ball screws every 40–50 operating hours.
Coolant concentration: the forgotten variable
Use a refractometer to check coolant concentration weekly. Target 5–8% for most general machining. Too weak? Poor lubrication and rust. Too strong? Skin irritation and foam.
Proper concentration does three things:
- Removes heat from the cut zone
- Lubricates the chip-tool interface
- Flushes chips away from the work area
| Coolant issue | What happens | Fix |
|---|---|---|
| Below 4% concentration | Tool wear doubles, surface finish degrades | Add concentrate |
| Above 10% concentration | Foaming, operator skin issues | Add water |
| Contaminated with tramp oil | Bacteria growth, bad smell | Skim daily |
Conclusion
CNC turning success isn’t about one magic trick. It’s about getting five fundamentals right: speeds and feeds, rigidity, setup verification, tool geometry, and maintenance. Master these, and you’ll see fewer crashes, longer tool life, and parts that actually hold tolerance. Start with the tip that fixes your biggest current problem. Then work through the rest. Your scrap bin will thank you.
FAQ
What is CNC turning used for?
CNC turning creates cylindrical parts like shafts, bushings, pulleys, and threaded components. The workpiece spins while a stationary cutting tool removes material.
How do I reduce chatter in CNC turning?
Shorten tool overhang, support long parts with a tailstock, reduce depth of cut, or adjust spindle speed. Sometimes changing the feed rate breaks the vibration cycle.
What are the best feeds and speeds for CNC turning?
Start with manufacturer recommendations for your specific insert and material. For steel, try 80–120 m/min and 0.3–0.8 mm/rev for roughing. Adjust based on tool wear and surface finish.
Why is my CNC turned part out of round?
Common causes: worn spindle bearings, incorrect chuck clamping pressure, or a bent part from excessive cutting force. Check tailstock alignment and workholding first.
How often should I replace CNC turning inserts?
Replace when flank wear reaches 0.3mm, when surface finish degrades, or after visible chipping. For roughing steel, 60–120 minutes of cut time is typical.
