MSJ Precision CNC Turning Capabilities
Moshijia Technology is capable to provide cost-effective CNC turning lathe services and quality products with high precision and accuracy for vast projects.
Flexible pricing
Fast Quote, Flexible Pricing; High Dimensional Accuracy, High Speed and High Reliability.
High Quality
CMM, Pin Gauges, Roughness Machine, Projector and Micrometer, Concentricity measurement; Rapid Prototyping and End-Use Production.
Custom Material Finishes
50+ Metals, Plastics and Wood Mats; 10+ Surface Finishes; Smooth Surface and Strict Tolerance, Custom Material and Surface Treatment.
High Efficiency
High Productivity and Improved Efficiency; Low, Medium to High Volume Production Runs.
Custom CNC Turning Services & Parts – China CNC Turned Components OEM Manufacturer
Moshijia stands as a seasoned Chinese provider, manufacturer, and exporter specializing in precision CNC turning services. We pride ourselves on delivering top-tier OEM CNC lathe machine services tailored to meet your specific needs. Our facility is equipped with a diverse range of advanced CNC turning lathes and machines, enabling us to expertly process a wide array of components, including washers, bolts, shafts, rivets, gaskets, sleeves, threaded joints, stainless steel fittings, pipe fittings, lights, wheel bolts, and beyond.
Our state-of-the-art CNC turning center is adept at handling a variety of materials, such as stainless steel, carbon steel, aluminum, copper, brass, and titanium. We are committed to selecting the most suitable precision turning process to precisely match your requirements. Through our customized CNC machining services, we ensure that our clients receive high-quality CNC turning components that meet their exact specifications.
CNC Turning Tolerance of Moshijia
Msj have multiple CNC manufacturing capabilities and can meet any specific custom CNC turning machining needs.
1. Size Capabilities
| Category | Details |
|---|---|
| Threaded Holes | – UNC & UNF threads: From #2 up to 0.5 in. – Metric threads: M1.2 and above |
| Radii | Turned outside corners will typically include a 0.005 in. chamfer. |
| Minimum Hole Size | – Minimum on-axis and axial: 0.04 in. (1mm) – Minimum radial: 0.08 in. (0.5mm); 0.04 in. (0.5mm) for aluminum and brass |
| Grooves | – Minimum OD groove width: 0.047 in. (1.2mm) – Minimum OD groove width for aluminum and brass: 0.019 in. (0.5mm) – Maximum OD groove depth: 0.95 in. (24.1mm) — varies with groove width |
| Linear Dimension | – ± 0.025mm – ± 0.001 inches |
| Hole Diameter (not reamed) | – ± 0.025mm – ± 0.001 inches |
| Shaft Diameter | – ± 0.025mm – ± 0.001 inches |
| Part Dimension Limit | – 950*550*480mm – 37.0 * 21.5 * 18.5 inches |
2. CNC Machining Standards
2.1 Dimensional Tolerances (DIN ISO 2768-1 (1991-06))
| Tolerance Class | Material Type | Dimension Range (mm) | Tolerance (mm) |
|---|---|---|---|
| F | Metal (ISO 2768-F) | 0.5 to 3 | ±0.05 |
| F | Metal (ISO 2768-F) | Over 3 to 6 | ±0.05 |
| F | Metal (ISO 2768-F) | Over 6 to 30 | ±0.1 |
| F | Metal (ISO 2768-F) | Over 30 to 120 | ±0.15 |
| F | Metal (ISO 2768-F) | Over 120 to 400 | ±0.2 |
| F | Metal (ISO 2768-F) | Over 400 to 1000 | ±0.3 |
| F | Metal (ISO 2768-F) | Over 1000 to 2000 | ±0.5 |
| F | Plastic (ISO 2768-F) | 0.5 to 3 | ±0.05 |
| F | Plastic (ISO 2768-F) | Over 3 to 6 | ±0.05 |
| F | Plastic (ISO 2768-F) | Over 6 to 30 | ±0.1 |
| F | Plastic (ISO 2768-F) | Over 30 to 120 | ±0.15 |
| F | Plastic (ISO 2768-F) | Over 120 to 400 | ±0.2 |
| F | Plastic (ISO 2768-F) | Over 400 to 1000 | ±0.3 |
| F | Plastic (ISO 2768-F) | Over 1000 to 2000 | ±0.5 |
2.2 General Tolerances for Shape and Position (DIN ISO 2768-2 (1991-04))
| Tolerance Class | Characteristic | Dimension Range (mm) | Tolerance (mm) |
|---|---|---|---|
| H | Straightness and Flatness | 10 | ±0.02 |
| H | Straightness and Flatness | 10 to 30 | ±0.05 |
| H | Straightness and Flatness | 30 to 100 | ±0.1 |
| H | Straightness and Flatness | 100 to 300 | ±0.2 |
| H | Straightness and Flatness | 300 to 1000 | ±0.3 |
| H | Straightness and Flatness | 1000 to 3000 | ±0.4 |
| H | Verticality | To 100 | ±0.2 |
| H | Verticality | 100 to 300 | ±0.3 |
| H | Verticality | 300 to 1000 | ±0.4 |
| H | Verticality | 1000 to 3000 | ±0.5 |
| H | Symmetry | To 100 | ±0.5 |
| H | Symmetry | 100 to 300 | ±0.5 |
| H | Symmetry | 300 to 1000 | ±0.5 |
| H | Symmetry | 1000 to 3000 | ±0.5 |
Choose CNC Turning Materials
With over a decade of experience, we have a team of professional engineers and experienced staff who can deliver high-quality CNC turning services for a wide range of materials, including metal, plastic, and wood. Our workshops are equipped with various types of lathes specifically designed for turning metal and wood. Depending on the material of the machined parts, certain maintenance and safety precautions may be necessary for the lathe. Below is a list of common materials that CNC turning manufacturers typically work with. If the material you need is not included in the table, please don’t hesitate to get in touch with us.
| Material | Main Types & Grades |
|---|---|
| Aluminum | Aluminum 2024 Aluminum 5052 Aluminum 5083 Aluminum 6063 Aluminum 6061 Aluminum 6082 Aluminum 7050 Aluminum 7075 |
| Brass/Bronze | Brass C360 Brass 260 C932 M07 Bearing Bronze |
| Copper | Copper C110 Copper 101 |
| Steel | Alloy Steel 4130 Alloy Steel 4140 Mild Steel 1018 Mild Steel A36 |
| Stainless Steel | Stainless Steel 17-4 Stainless Steel 18-8 Stainless Steel 303 Stainless Steel 304/304L Stainless Steel 316/316L Stainless Steel 416 Stainless Steel 420 |
| Titanium | Titanium Grade 2 Titanium Grade 5 |
| Plastics | ABS Nylon POM PEEK PMMA PTFE Polystyrene Polyethylene Polycarbonate |
Part Finishing treatment Services
We offer a diverse range of metal surface finishing options for your CNC-turned parts. These services can enhance the appearance of the parts, improve surface smoothness, boost corrosion resistance, and more.
| Surface Finish Type | Description |
|---|---|
| As machined | Standard finish with a surface roughness of 1.6 μm (126 μin). |
| Smoothing | The standard smoothing surface roughness (Ra) is 0.8 μm (63 μin). |
| Painting | Spraying paint, pigment, or color to a solid surface as a colored protective layer. |
| Passivation | Remove ferrous contaminants or use a light coat of protective material to create a shell. |
| Powder Coating | A functional and decorative finish that is applied as a free-flowing, dry powder. |
| Anodizing | Type II (anodizing color or clear) or Type III (anodizing hard coat) |
| Polishing | Produce a smooth and shiny surface. |
| Black Oxide | Forming a black conversion coating on metal parts. |
| Bead Blasting | Removing surface deposits by applying fine glass beads at a high pressure. |
| Abrasive Blasting/Sandblasting | Smoothing and cleaning a hard surface by forcing solid particles across that surface. |
| Electroplating/Plating | Form a thin coherent metal coating on an electrode. |
| Brushing | Polishing the metal with grit resulting in a unidirectional satin finish. |
| Chromate Conversion Coating | Increase the corrosion resistance while maintaining conductive properties. |

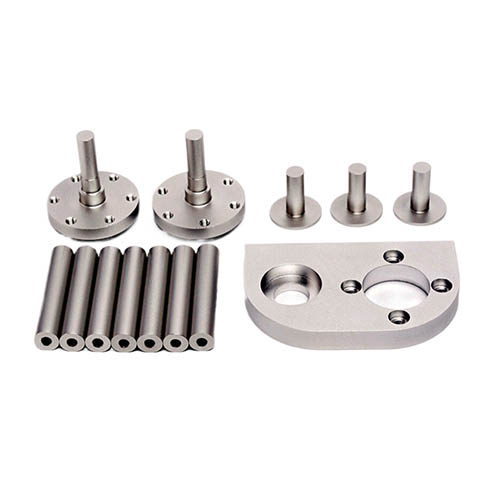

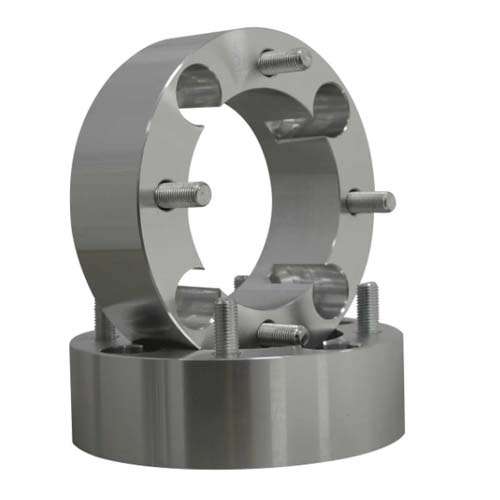

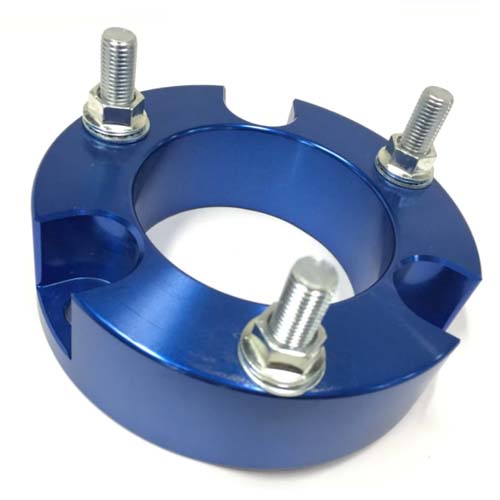

Our Parts CNC Turning Case
Why Choose Msj CNC Turning?
Msj is a quality CNC Turning Services company, has cooperated with many companies in the United States, Germany, and Canada for up to 10 years. Fast DMF assessment, and efficient service, is the beginning of our cooperation.
What is CNC Turning?
CNC Turning is a precision machining process that utilizes computer numerical control (CNC) technology to rotate a cylindrical workpiece while a cutting tool moves linearly to remove material, creating cylindrical parts with high accuracy and consistency.
Core Principles:
CNC Control: The entire process is programmed via CNC software, which dictates the tool path, cutting speed, feed rate, and depth of cut, ensuring repeatability and precision.
Workpiece Rotation: The cylindrical workpiece is securely mounted on the spindle of a CNC lathe and rotated at high speed.
Tool Movement: A stationary or moving cutting tool (e.g., carbide insert) is fed along the axis (longitudinal) or perpendicular (radial) to the rotating workpiece to remove material.
Automotive
Aerospace
Medical
Industrial Machinery
CNC Machining Capabilities
Msj has more than decades of experience in CNC manufacturing services in China and can offer one-stop service (CNC machining parts & CNC machining prototype) for our OEM customers. Msj CNC Machining Center not only has advanced equipment but also have a professional team of experienced engineers, operators and inspectors to make the customer’s design come true.
CNC Turning
Msj provides excellent quality precision service CNC turning for medical, electronics, automobile industry and more.
CNC Milling
Msj offers worldwide clients precision custom CNC Milling Services, variety of materials available to meet the needs!
5 Axis Machining
Msj offers professional 5-axis CNC machining services, producing high-precision metal and plastic parts for various industries.
