Introduction
you can weld stainless steel sheet metal successfully without warping or ruining its corrosion resistance. The key is controlling heat input and using the right safety gear. Thin stainless steel (under 3mm) is highly sensitive to heat. Too much, and you get distortion, oxidation, and toxic fumes. This guide walks you through proven techniques to protect both your workpiece and your health.

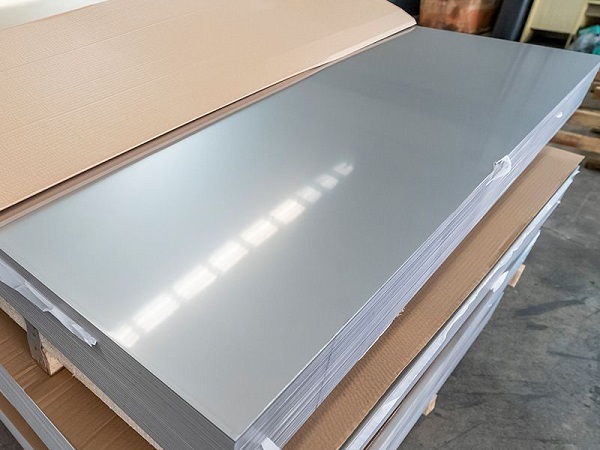

What Makes Stainless Steel Sheet Metal Different?
Stainless steel doesn’t act like mild steel or aluminum. It retains heat three times longer than carbon steel. This means the heat builds up quickly in stainless steel sheet metal, leading to warping, burn-through, and “sugaring” (oxide formation on the back side).
Another difference: its chromium oxide layer gives corrosion resistance. But welding destroys this layer locally. If you don’t restore it, rust will start at the weld within weeks.
Real-world example: A shop welding 1.2mm 304 stainless for food equipment saw 40% reject rates from warping. After switching to back purging and copper chill bars, reject rates dropped to under 5%.
Why Does Stainless Steel Warp So Easily?
High thermal expansion and low heat conductivity cause the trouble. When you weld, the metal expands where heated but resists spreading that heat away. The result? Buckling, twisting, and “oil-canning” distortion.
Key numbers to remember:
- Stainless steel expands ~50% more than carbon steel when heated
- It dissipates heat at only 1/3 the rate of aluminum
- Temperatures above 425°C (800°F) can cause chromium carbide precipitation (sensitization)
Prevention starts with understanding these limits.
What Safety Gear Do You Need for Stainless Steel Welding?
Hexavalent Chromium: The Hidden Danger
Welding stainless steel sheet metal produces hexavalent chromium (Cr(VI)) fumes. This is a known carcinogen. Regular dust masks won’t stop it.
Minimum protection:
- PAPR (Powered Air-Purifying Respirator) – Best choice for daily welding
- N100 or P100 respirator – Acceptable for short jobs with good ventilation
- Local exhaust ventilation – Keep fume extractor nozzle within 4 inches of the arc
UV Reflection Risk
Stainless steel reflects up to 30% more UV radiation than mild steel. You can get flash burns on your face, neck, and even under your chin. Wear a welding helmet with shade 10-13, plus a full wraparound face shield under it when grinding.
PPE Checklist
| Hazard | Required Protection |
|---|---|
| Hexavalent chromium | PAPR or P100 respirator |
| UV reflection | Helmet shade 10-13 + side shields |
| Burns | Flame-resistant jacket (FR cotton or leather) |
| Metal spatter | Welding gloves (TIG: thin, MIG: thick) |
| Grinding debris | Face shield + safety glasses |
How Do You Prepare Stainless Steel Sheet Metal for Welding?
Cleanliness Is Non-Negotiable
Contamination destroys stainless welds. Oils, dirt, and even carbon steel dust cause porosity, cracking, and corrosion failure.
Step-by-step prep:
- Wipe with acetone or isopropyl alcohol – never chlorinated solvents
- Use dedicated stainless steel wire brushes – never used on carbon steel
- Grind or sand edges to remove any oxide layer
- Re-clean after grinding to remove embedded particles
Case study: A marine fabrication shop saw weld cracking on 316L sheet. Cause? A wire brush previously used on carbon steel. Cross-contamination introduced iron particles, which rusted and cracked the weld. They now color-code all stainless tools in blue.
Tool Dedication Rules
- Wire brushes: Stainless only, labeled and stored separately
- Grinding wheels: Use new wheels for stainless or designate specific ones
- Clamps and fixtures: Clean any carbon steel residue before contact
Which Welding Process Works Best for Thin Stainless?
TIG Welding (GTAW) – Precision Choice
For stainless steel sheet metal under 3mm, TIG gives the best control. You can adjust heat with a foot pedal and use filler only when needed.
Settings for 1.5mm 304 stainless:
- Amperage: 40-60 amps
- Tungsten: 2% thoriated (red) or 2% lanthanated (blue), 1.6mm diameter
- Polarity: DCEN (electrode negative)
- Gas lens: Yes – improves coverage and allows longer stick-out
- Argon flow: 10-15 CFH (with gas lens)
Pro technique: Use pulse welding – set peak current at 50A, background at 20A, pulses at 100 per second. This reduces heat input by 40-50% while maintaining fusion.
MIG Welding (GMAW) – Faster but Riskier
For sheet metal 2mm and thicker, MIG works well with short-circuit transfer. Never use spray transfer on thin sheet – it will blow through.
Recommended settings:
- Gas: 98% Argon / 2% CO₂ (or 98/2 with nitrogen for better bead shape)
- Wire: 0.8mm or 0.9mm 308L or 309L
- Voltage: 16-18V
- Wire speed: 150-200 inches per minute
- Technique: Stitch welding – weld 1 inch, skip 2 inches, let cool
Process Comparison Table
| Process | Best For | Heat Control | Speed | Skill Level |
|---|---|---|---|---|
| TIG (GTAW) | Under 2mm, visible welds | Excellent | Slow | High |
| MIG (GMAW) | 2-4mm, long seams | Good | Fast | Medium |
| Spot welding | Lap joints, under 1.5mm | Very good | Very fast | Low |
How Do You Prevent Warping and Oxidation?
Back Purging: Stopping “Sugaring”
When you weld stainless, the back side of the joint oxidizes if exposed to air. This “sugar” or “cauliflower” is brittle and destroys corrosion resistance.
For critical welds (food, medical, marine): Fill the back side with argon. Tape both ends of the joint, insert a purge tube, and flow argon at 15-20 CFH until oxygen levels drop below 1%.
Quick method for non-critical work: Use solar flux (Type B) – mix with alcohol, paint on back side. It creates a protective layer without gas. One tube lasts for hundreds of feet of weld.
Heat Control Techniques That Work
Copper or aluminum chill bars: Clamp these behind the joint. Copper pulls heat away 8x faster than stainless. For 1mm sheet, a 10mm thick copper bar lets you weld continuously without warping.
Tack welding pattern: Place tacks every 25-40mm (1-1.5 inches). On long seams, tack from center outward. Let each tack cool 5 seconds before the next.
Backstep welding: Weld 50mm forward, then skip back 25mm. This balances heat distribution.
Amperage Guidelines for Stainless Sheet Metal
| Thickness | TIG Amps (no filler) | TIG Amps (with filler) | MIG Amps |
|---|---|---|---|
| 0.8mm (20 ga) | 25-35 | 35-45 | Not recommended |
| 1.2mm (18 ga) | 40-50 | 50-65 | 30-40 |
| 1.6mm (16 ga) | 55-70 | 70-85 | 40-55 |
| 2.5mm (12 ga) | 80-100 | 100-120 | 60-80 |
Always start at lower amperage and increase as needed.
What Filler Metals Should You Use?
Match filler to base metal. Using the wrong filler causes cracks or rust spots.
Common pairings:
- 304 stainless → 308L filler (most common)
- 316 stainless → 316L filler (marine/chemical)
- 304 to carbon steel → 309L filler
- 430 stainless (ferritic) → 430 filler or 308L
The “L” means low carbon (under 0.03%). This prevents sensitization – where chromium forms carbides instead of protecting against rust.
Diameter guide for TIG:
- 1.2mm sheet: 1.0mm filler rod
- 1.6-2.5mm sheet: 1.6mm filler rod
- Over 2.5mm: 2.4mm filler rod
How Do You Restore Corrosion Resistance After Welding?
Welding destroys the chromium oxide layer. You must restore it or the weld will rust first.
Method 1: Pickling paste (gel form)
- Brush on weld area
- Wait 15-30 minutes
- Rinse thoroughly with water
- Neutralize with baking soda solution
Method 2: Electrochemical cleaning (better for food/medical)
- Uses a probe with conductive fluid
- No acid runoff
- Leaves a bright, passivated surface
Method 3: Mechanical (for thin sheet only)
- Fine abrasive pad (not steel wool)
- Follow by citric acid spray
- Not as reliable as chemical methods
Safety note: Pickling paste contains hydrofluoric acid. Wear acid-resistant gloves, face shield, and rubber apron. Never use on hot metal – it releases toxic fumes.
Common Defects and How to Fix Them
| Defect | Cause | Solution |
|---|---|---|
| Sugaring (back side oxidation) | No purge or insufficient argon | Use back purge or solar flux |
| Weld discoloration (blue/rainbow) | Too much heat | Reduce amps, increase speed, use chill bar |
| Porosity (pinholes) | Contamination or low gas flow | Clean again, check for gas leaks |
| Burn-through | Excessive heat or gap | Reduce amps, tighten fit-up, use backing |
| Cracking at crater | Fast cooling without fill | Add filler at end, use crater fill function |
Quick Reference: Safe Welding Checklist
Before welding stainless steel sheet metal, run through this list:
- [ ] Respirator (P100 or PAPR) fitted and tested
- [ ] Ventilation or fume extractor on
- [ ] Helmet with correct shade (10-13)
- [ ] FR jacket and gloves (dry, no holes)
- [ ] Material cleaned with acetone
- [ ] Dedicated stainless tools only
- [ ] Copper or aluminum chill bar in place
- [ ] Back purge set up (if needed)
- [ ] Low amperage, high travel speed planned
- [ ] Pickling paste or passivation method ready
Conclusion
Welding stainless steel sheet metal safely and successfully comes down to three things: heat control, contamination prevention, and respiratory protection. Use lower amperage than you think you need, keep everything surgically clean, and never weld stainless without proper fume protection. With TIG on thin gauges or MIG with stitch welding on thicker material, you can achieve strong, corrosion-resistant welds without warping. Passivate after welding to restore the chromium layer. Follow these practices, and your stainless steel projects will last for decades.
FAQ
Can you weld stainless steel sheet metal with a regular MIG welder?
Yes, but you must change to 98% argon / 2% CO₂ gas and use stainless steel wire (308L or 309L). Do not use straight CO₂ or argon-CO₂ blends meant for mild steel.
What happens if you don’t use back purge on stainless steel?
The back side of the weld will form chromium oxide (sugaring). This layer is brittle, reduces corrosion resistance, and can flake off into your product. For tanks or tubes, sugar will contaminate the contents.
Why does my stainless steel weld turn black or gray?
That’s oxidation from too much heat or insufficient gas coverage. Reduce amperage, increase travel speed, and check that your gas lens isn’t clogged. Also verify argon flow is at least 10-15 CFH.
How do you clean stainless steel before welding without damaging it?
Use acetone and a dedicated stainless steel wire brush. Never use chlorinated solvents like brake cleaner – welding creates phosgene gas. After brushing, wipe again with a clean acetone rag.
What is the best thickness of stainless steel sheet metal for beginners to weld?
1.6mm (16 gauge) is ideal. It’s thick enough to resist burn-through but thin enough to learn heat control. Start with TIG welding on scrap pieces before moving to 1.2mm or thinner.
