Sheet Metal Fabrication Services

✔ Precision: High accuracy in every part.

✔Customized: Tailored solutions for unique needs.

✔Fast: Quick turnaround times.

✔Versatile: Wide material and finish options.

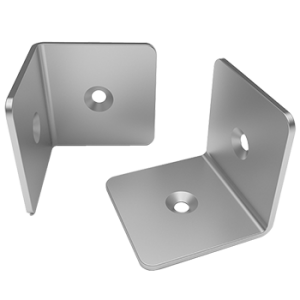

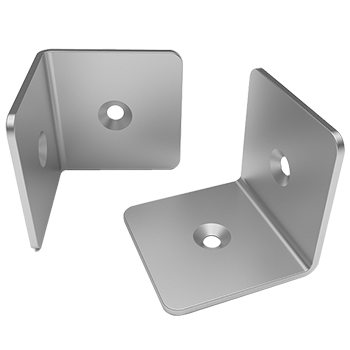

What is Sheet Metal Fabrication?

Sheet metal fabrication is a versatile manufacturing process that involves transforming flat metal sheets into a wide range of products and components. This process typically includes several key steps such as cutting, bending, and assembling the metal sheets to create the desired shapes and structures. It is widely used across various industries, including automotive, aerospace, electronics, and construction, due to its ability to produce durable, high-precision parts and products. The materials used can vary from steel and aluminum to stainless steel, depending on the specific requirements of the application. Sheet metal fabrication is essential for creating everything from small parts like brackets and enclosures to large structures like building frameworks and vehicle bodies.

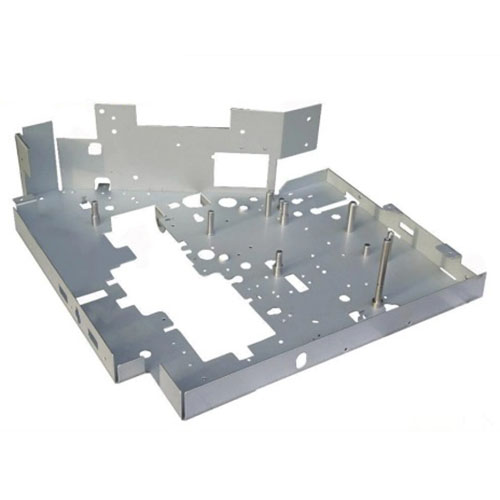

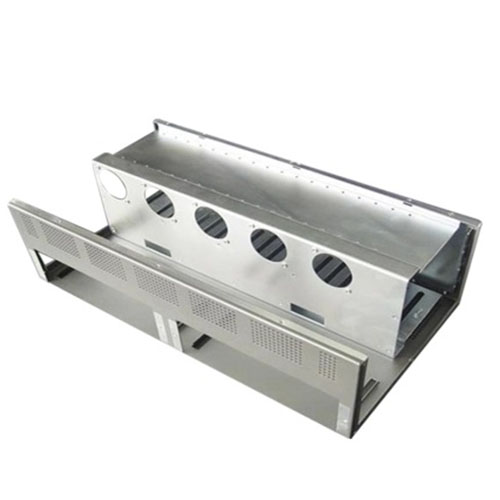

Our Parts Sheet Metal Case

Choose Sheet Metal Materials

Sheet Metal Stainless Steel

304 Stainless Steel
316 Stainless Steel
430 Stainless Steel

Sheet Metal Carbon Steel

ASTM A36 Carbon Steel
SAE 1008 Carbon Steel
SAE 1018 Carbon Steel

Sheet Metal Aluminum

1100 Aluminum
3003 Aluminum
5052 Aluminum
6061 Aluminum

Sheet Metal Copper

C110 Copper
C122 Copper
C145 Copper

Sheet Metal Brass

C360 Brass
C464 Brass
C260 Brass

Sheet Metal Zinc

Z100 Metal Zinc
Z143 Metal Zinc
Z275 Metal Zinc

Sheet Metal Galvanized Steel

G90 Galvanized Steel
G60 Galvanized Steel
G40 Galvanized Steel

Part Finishing treatment Services

Standard (As-Milled)

The finish option with the quickest turnaround. Machined parts are left with visible tool marks and potentially sharp edges and burrs, which can be removed upon request. CNC machining surface finish is comparable to 125 uin Ra finish.

Bead Blast

The part surface is left with a smooth, matte appearance.

Tumbled

This is a batch-based process that tumbles vibrating media to remove sharp edges and burrs on CNC parts. Tumbling can remove machine marks on exterior surfaces. Parts over 8” may require a manual review.

Anodized (Type II Or Type III)

Type II (MIL-A-8625, Type II) creates a corrosion-resistant finish. Parts can be anodized in different colors—clear, black, red, and gold are most common—and are usually associated with aluminum.
Type III (MIL-A-8625/MIL-PRF-8625, Type III, Class 1/2 “hardcoat”) is thicker and creates a wear-resistant layer in addition to the corrosion resistance seen with Type II.

Titanium Anodize

A surface finish for titanium per AMS-2488 Type 2 specification. Also called Tiodize, this finish increases fatigue strength and the wear resistance of a part. Titanium anodized parts are common in aerospace and medical device manufacturing. Non-pigmented titanium anodize finishes will dull shine.

PTFE Impregnated Hard Anodize

A hard coat anodize process that embeds PTFE to create a self-lubricating, dry contact surface with Type 3 hard coat’s protective properties. This finish can be used on aluminum alloys or titanium and increases the service life of the product. This finish conforms to the AMS-2482 Type 1 Hard Coat Anodizing with Teflon (Non-Dyed).

Chemistry Film (Chromate Conversion Coating)

Provides corrosion resistance and good conductivity properties. Can be used as a base for paint. Can leave surface yellow/gold. Adds very little thickness, about 0.00001”-0.00004”. Chemistry film will conform to MIL-DTL-5541, TYPE I/II.

Passivation

Improves corrosion resistance for 200 and 300 series and precipitation hardened corrosion-resistant steels. Thickness is negligible, about 0.0000001”. Conforms to ASTM A967, AMS-QQ-P-35, MIL-STD-171, ASTM A380, or AMS 2700.

Powder Coat

This process is where powdered paint is sprayed onto a part and baked in an oven. This creates a strong, wear- and corrosion-resistant, more durable layer than standard painting methods. A wide variety of colors are available to create the desired aesthetic.

Electropolishing

An electrochemical process cleans steel parts to reduce corrosion and improve appearance, by making the metal brighter. Removes about 0.0001”-0.0025” of the metal. Conforms to ASTM B912-02.

Electroless Nickel Plating

Provides uniform nickel coating which offers protection from corrosion, oxidation, and wear on irregular surfaces. The finished part will be brighter. Thickness starts at .0001”. Conforms to MIL-C-26074.

Silver Plating

Silver offers high solderability and electrical conductivity but is susceptible to tarnish. Conforms to AMS QQ-S-365D. Thickness is about 0.00002” – 0.0003.”

Gold Plating

Gold Plating provides good corrosion and tarnish resistance with excellent solderability. Default application specification is MIL-G-45204 and ASTM B488, CLASS 00, 0, OR 1. Thickness is about 0.00002″ – 0.00005.”

Zinc Plating

Provides uniform zinc coating which offers protection from corrosion, oxidation, and wear on irregular surfaces. Conforms to ASTM B633-15.

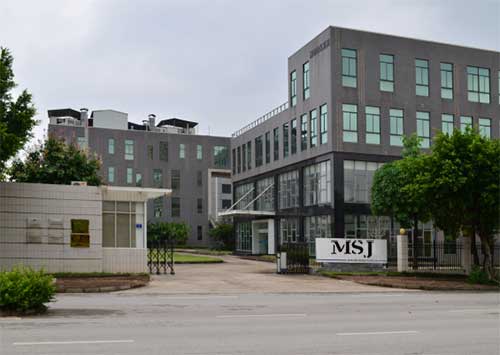

Why Choose Msj Sheet Metal?

MSJ Sheet Metal Fabrication offers unparalleled quality, customization, and efficiency, ensuring your projects are completed to the highest standards.

High-Quality Materials: We use top-grade metals for durability and performance.

Custom Solutions: Tailored services to meet your unique specifications.

Precision Engineering: State-of-the-art equipment for accurate fabrication.

Quick Turnaround: Fast delivery without compromising quality.

Expertise: Skilled professionals with extensive industry experience.

Sheet Metal application

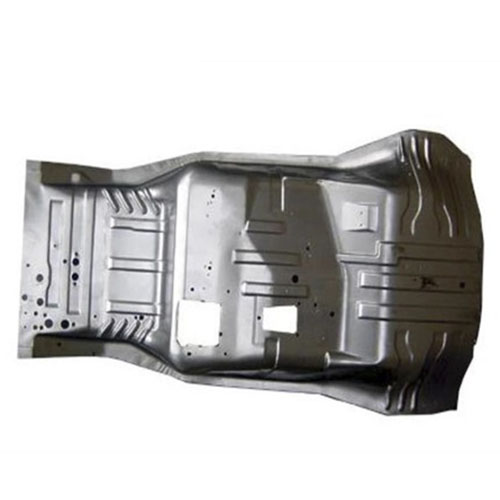

Automotive

Industrial theme view. Repair and maintenance of aircraft engine on the wing of the aircraft.

Aerospace

Medical

Industrial Machinery

More metal Machining Capabilities

Msj has more than decades of experience in CNC manufacturing services in China and can offer one-stop service (CNC machining parts & CNC machining prototype) for our OEM customers. Msj CNC Machining Center not only has advanced equipment but also have a professional team of experienced engineers, operators and inspectors to make the customer’s design come true.

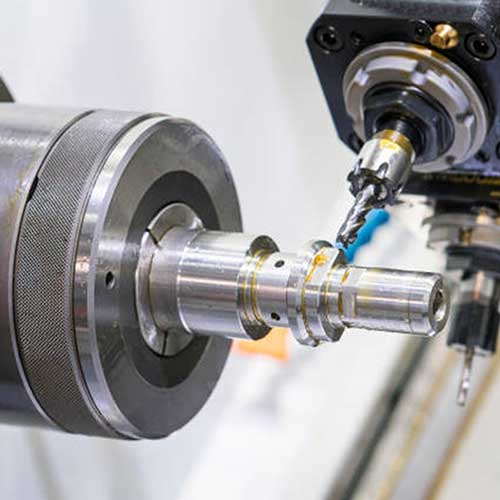

CNC Turning

Msj provides excellent quality precision service CNC turning for medical, electronics, automobile industry and more.

CNC Milling

Msj offers worldwide clients precision custom CNC Milling Services, variety of materials available to meet the needs!

5 Axis Machining

Msj offers professional 5-axis CNC machining services, producing high-precision metal and plastic parts for various industries.
