Precision Mechanical Parts Case – Mazak Machines Aluminum Alloy Components

Case introduction

---

This aluminum alloy component is machined by Mazak CNC equipment, and the key steps in the process are as follows:

Precision Machining:

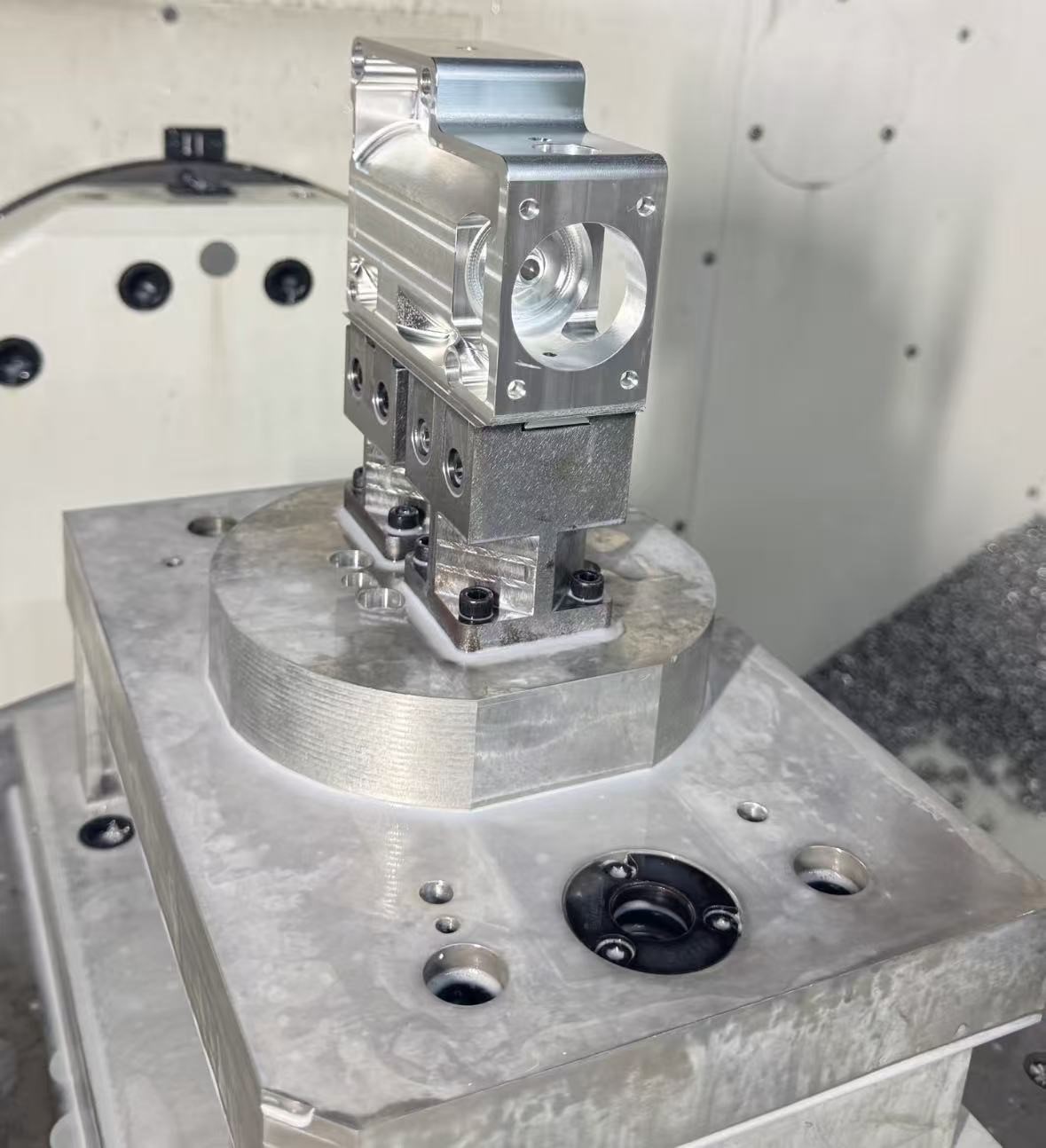

Complete integrated machining with Mazak Multi-Axis CNC Milling:

Using multi-axis linkage technology, complex structures such as special-shaped cavities, high-precision hole positions, and assembly surfaces of components are synchronously processed.

With special fixtures, multiple processes of clamping can be completed at one time, reducing clamping errors and ensuring the positional accuracy of each structure.

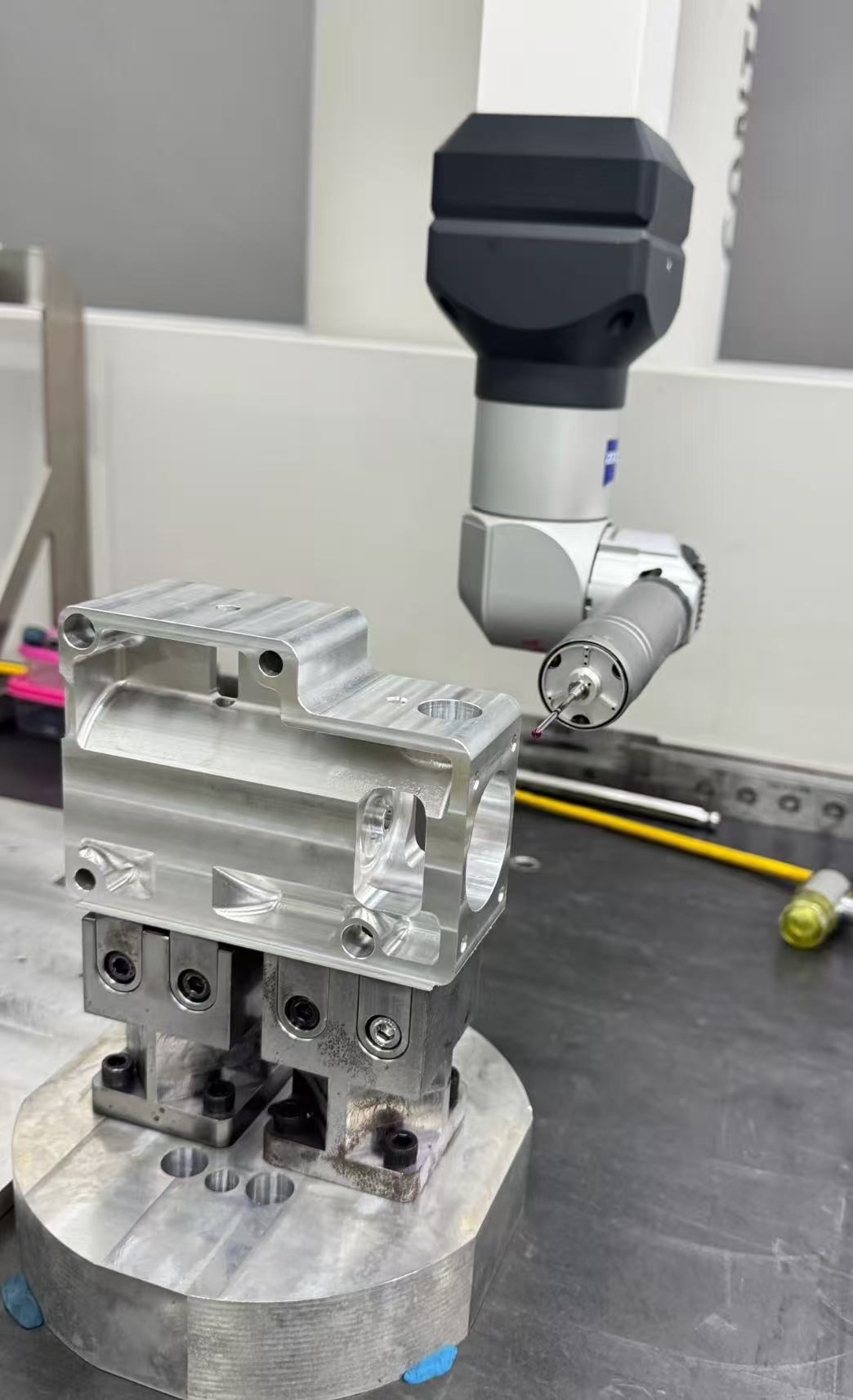

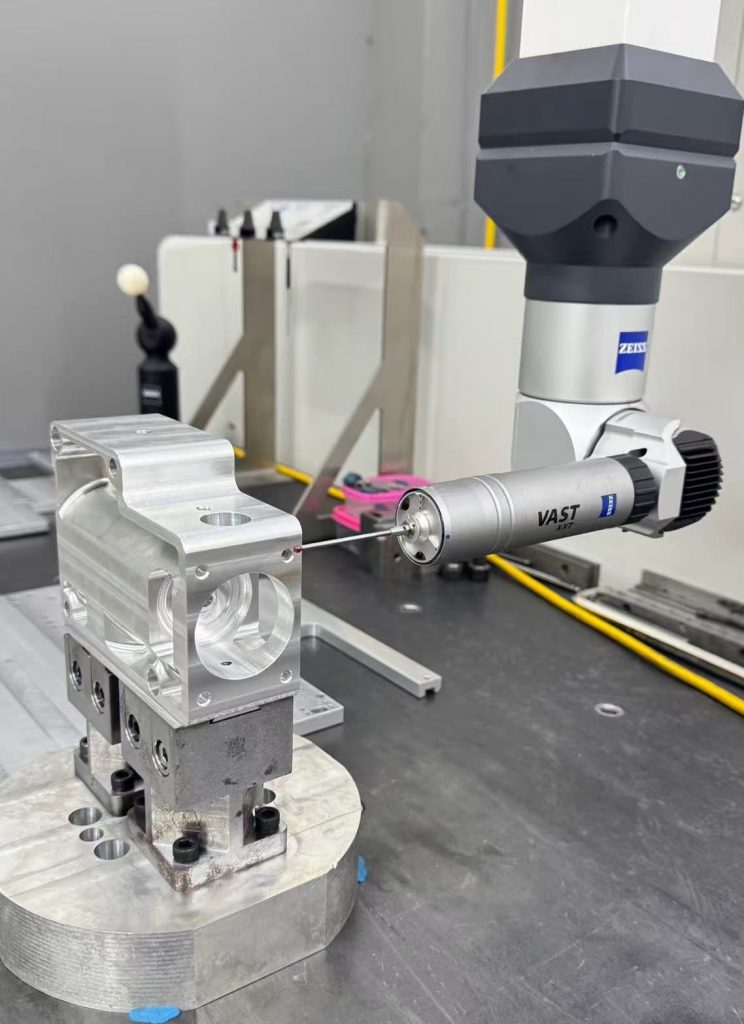

Accuracy Inspection:

After the processing is completed, the dimensions and shape tolerances of the components (such as the coaxiality of the hole and the flatness of the assembly surface) are used to perform full-dimensional inspection to ensure that the accuracy meets the assembly requirements of industrial equipment.

This product is the core functional component of industrial equipment, and the features are as follows:

Machining advantages: Mazak CNC’s high stability + multi-axis machining capabilities realize high-precision molding of complex structures and adapt to the precision transmission/connection needs of equipment;

Material adaptation: Aluminum alloy material takes into account both lightweight and mechanical strength, suitable for the lightweight design of industrial equipment;

Accuracy guarantee: ZEISS three-coordinate full inspection process avoids the flow of out-of-order parts into the assembly link and improves the overall reliability of the equipment.
