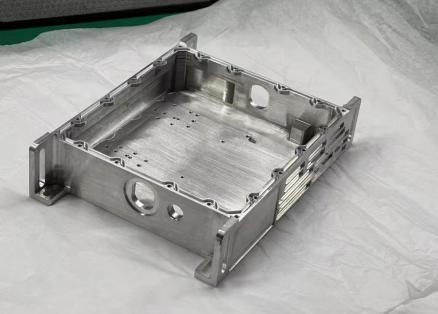

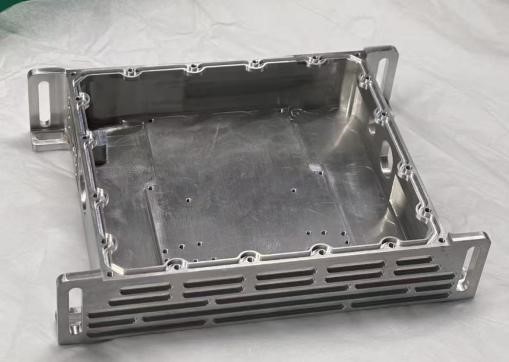

Prototype case – aluminum equipment shell
Case introduction
The machining process of this aluminum equipment housing involves the following key steps:
Prototype Machining:
CNC precision milling is used to integrate the 6061 aluminum alloy blank, and the molding of the shell outer frame, mounting bracket, heat dissipation grille, internal positioning holes/screw holes and other structures is completed in turn; Through multi-axis milling technology, it realizes precise machining of complex structures such as curved surface transitions and narrow grooves.
Post-treatment:
The surface of the shell is brushed to form a uniform straight texture, which not only enhances the metallic texture of the appearance, but also weakens the processing traces, and enhances the scratch resistance of the surface.
This product is a protective and heat dissipation housing for electronic equipment, and the core features are as follows:
Structural integration: CNC integrated processing enables the shell to have functions such as installation and fixation, equipment protection, heat dissipation and circulation, etc., reducing the assembly link.

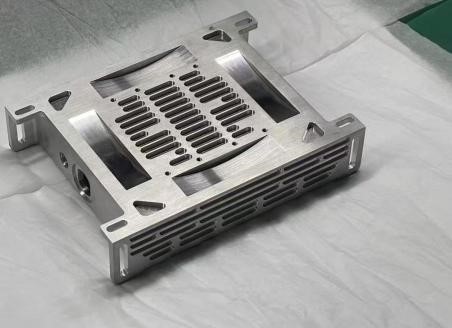

Heat dissipation design: The combination of large-area grille and metal material can quickly export the operating heat of the equipment and adapt to the heat dissipation needs of high-power electronic components.
Precision adaptation: High-precision machining of internal positioning holes and screw holes ensures that electronic modules can be accurately assembled and improves the overall stability of the equipment.
